80Watt integrated 395nm high power UV LED diodes for UV printer

Sertifika
iyi kalite Acrylic Nail System satış için
iyi kalite Acrylic Nail System satış için
I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Good quality,Good price,Good service!

—— Emma simankovich

Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

Ben sohbet şimdi

80Watt integrated 395nm high power UV LED diodes for UV printer

Çin 80Watt integrated 395nm high power UV LED diodes for UV printer Tedarikçi

Büyük resim :  80Watt integrated 395nm high power UV LED diodes for UV printer

Ürün ayrıntıları:

Place of Origin: China
Marka adı: HHE
Sertifika: CE/ROHS/SGS/EN62471
Model Number: HH-80WB3CP810-M

Ödeme & teslimat koşulları:

Minimum Order Quantity: 10pcs
Fiyat: negotiation
Packaging Details: anti-plastic bags package Box packing
Delivery Time: 7-30 working days according to order quantity
Payment Terms: Western Union, T/T, MoneyGram,paypal
Supply Ability: 65,000,000pcs per month
Contact Now
Detaylı ürün tanımı
current: 2800mA voltage: 30-36v
Chip array: 8P10S Chip material: InGaN/GaAsp
product name: 80w uv 395nm led lifetime: 50000h
quality warranty: 2years power: 80w
chip brand: Epistar/Epileds/Cree/Sanan etc.

shenzhen 80w integrated 395nm high power uv led diodes for uv printer





Specifications:



Electrical / Optical Characteristics at TA=25℃

Parameter

Symbol

Min

Typ.

Max.

Unit

Test Condition

Luminous Flux

Φ

200

220

240

Lm

IF =3500mA

Viewing Angle

2θ1/2

110

120

130

deg

IF =3500mA

Wavelength

WD

395

398

400

nm

IF =3500mA

Forward Voltag

vF

30

33

36

V

IF =3500mA

Reverse Current

IR





10

uA

VR = 5V



Absolute Maximum Ratings at TA=25℃

Parameter

Maximum Rating

Power Dissipation

80W

Peak Forward Current(1/10 Duty Cycle, 0.1ms

Pulse Width)

3500mA

Continuous Forward Current

2800mA

Derating Linear From 30℃

0.07mA/℃

Reverse Voltage

5V

Operating Temperature Range

-20℃ to + 80℃

Storage Temperature Range

-30℃ to + 100℃

Lead Soldering Temperature

[1.6mm(.063") From Body]

260℃ for 5 Seconds

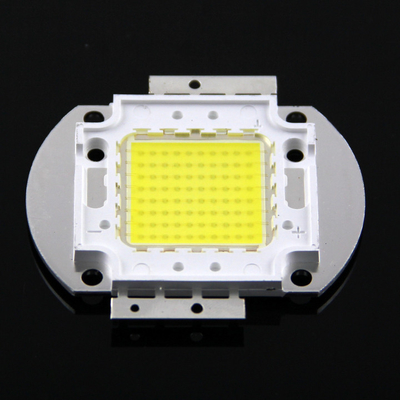

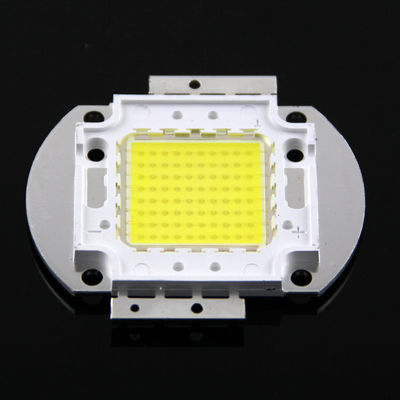

Product photos:


80Watt integrated 395nm high power UV LED diodes for UV printer



Main selling products:

High Power led: From 1 watt led to 400 watt Led in all colors.

Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,

piranha led, square led from 2mm to 10mm.

SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.

Led uv nail lamp: from 6w to 60w led uv nail lamp.

Led street light: from 50w to 330w fashion led street lights

Led grow light: all kinds of power and shape are available

Led aquarium light: all kinds of power available

Color available: red, green, blue, yellow, white, UV, IR, RGB, bicolor, etc. Available

Wavelength available: from 265nm to 940nm.





shipment and payment:

80Watt integrated 395nm high power UV LED diodes for UV printer





Hanhua company information:
Factory area: 5000 square meter
Total revenue:$ 13000000
Number of employee: 200
Company information: high standard dust free workshops and advanced entire automated electron system: ASM from USA, dispensing system from Japan, die bonding from Singapore  etc. Capacity: 65000000pieces per month from high power led, 85000000pieces per month from dip led, 95000000pieces per month from smd led, 10000pieces per month from integrated led.
